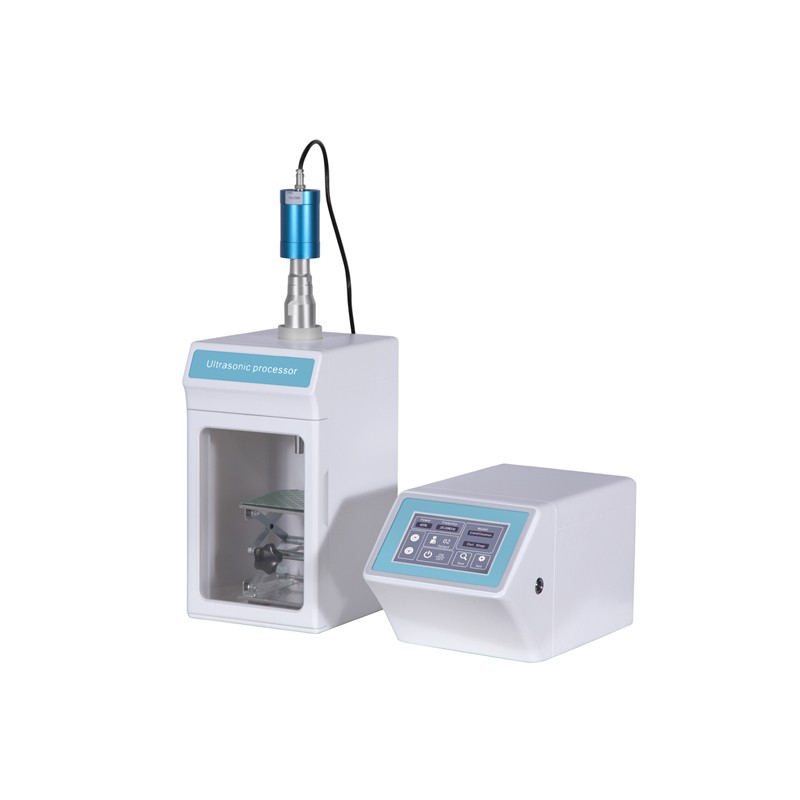

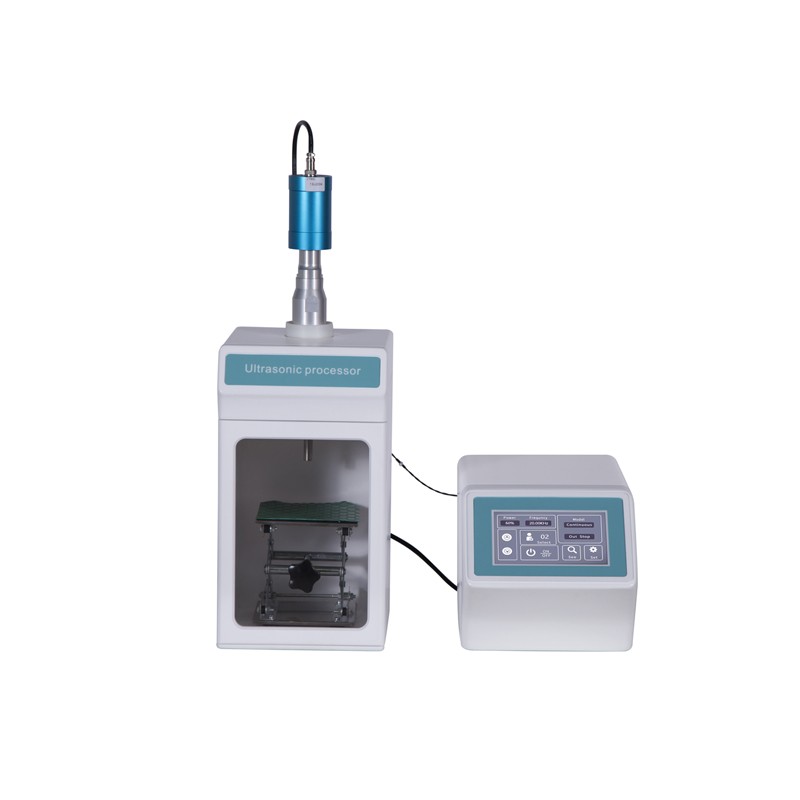

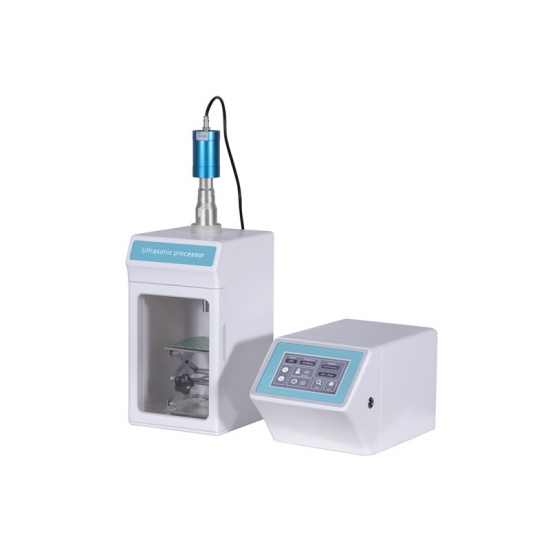

Ultrasonic processor, also alias: ultrasonic cell crusher, pulverizer, extractor, disperser, homogenizer, emulsifier; it is one of the commonly used equipment for laboratory sample pretreatment; widely used in:Composite material preparation (nano-material dispersion), life science (cell-breaking extraction and crushing),Pharmaceutical (Chinese herbal medicine and plant extraction), environmental science (extraction of soil organic matter),Sewage treatment (degradation of COD), homogenization and mixing (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)
Brand:
METHERUltrasonic Homogenizer Model No.:
20KHzHomogenizer Timer Setting:
1 min~99hHomogenizer User Group:
10 GroupsSonicator Operating Mode:
Pulse.Timer.Continuous
| Model No. | Frequencies | Power | Standard Probe | Capacity | Optional Probes | Applications | Download |
| DL-300F | 20KHz | 300W |
Φ3mm |
0.1~200ml |
Φ3(0.1~50ml) Φ6(50~200ml) |
EP tube Microsample |
|
| DL-550F | 20KHz | 550W |
Φ6mm |
0.1~600l |
Φ3(0.1~50ml) Φ6(50~300ml) Φ8（200~500ml） |
Small processing capacity | |
| DL-650F | 20KHz | 650W | Φ8mm | 0.1~800ml |
Φ3(0.1~50ml) Φ6(50~400ml) Φ8(200~800ml) |
Routine Laboratory | |
| DL-950F | 20KHz | 950W | Φ13mm | 0.1~1200ml |
Φ6(50~300ml) Φ8(300~600ml) Φ13(500~1200ml) |
Routine Laboratory | |
| DL-1200F | 20KHz | 1200W | Φ16mm | 0.1~1500ml |
Φ13(50~1000ml) Φ16(500~1500ml) |
Routine Laboratory | |
| DL-2000F | 20KHz | 2000W | Φ20mm | 0.1~3000ml |
Φ13(50~1000ml) Φ16(500~1500ml) Φ20(500~3000ml) |
Large Processing Capacity |
